Fruit Bucket Elevator for Juice Processing Lines

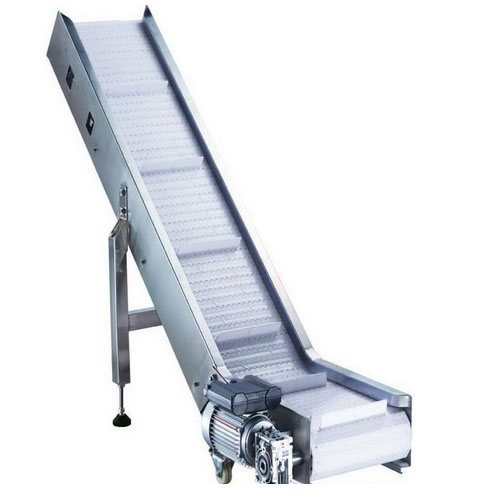

The fruit elevator transfers fruit and suitable vegetables between washing, sorting and downstream processing stages. The described inclined conveyor uses a food-grade engineering-plastic mesh belt with baffles, a stainless-steel frame, a receiving trough and adjustable drive speed. The route and feed height are set by the plant layout.
Fruit Elevator Conveyor Features and Options
- Baffles and a water-draining belt help lift produce while limiting rollback.
- Stepless motor speed adjustment can coordinate transfer with adjoining equipment.
- Conveyor alternatives described for this range include stainless-steel linked plate, food-grade plastic belt and compound rubber belt, subject to product suitability.
- Spray and water-collection options can be added to the specified arrangement.
- A stainless-steel motor cover and frame are listed; confirm washdown rating and product-contact materials for the final model.
 |
 |
Fruit Bucket Elevator Technical Parameters
| Parameter | BSJ-2 | BSJ-5 | BSJ-10 |
|---|---|---|---|
| Production capacity (t/h) | 2 | 5 | 10 |
| Power (kW) | 0.75 | 0.75 | 1.5 |
| Size (mm) | 3000 × 600 × 2500 | 3000 × 850 × 2500 | 3000 × 950 × 2500 |
These are the original listed model values. Confirm actual capacity and conveyor dimensions against fruit size, belt type, slope and line layout.
Fruit Elevator Installation and Commissioning
Installation should start with the approved layout, support locations and anchor points. Assemble and align the conveyor frame, feed chute, discharge head, belt and tensioning components according to the selected model. Electrical specialists should install the control cabinet, cables, limit switches and guards, then verify direction, speed control and safety functions. Belt joining methods depend on the chosen belt material; the original instructions are not universal for all conveyor versions.
Fruit Elevator Applications and Service Scope
This elevator can link washing and sorting to a crusher or other machine in a fruit juice production line. Provide produce type, throughput, infeed and discharge heights, available footprint and cleaning requirements for selection. AGICO can discuss installation guidance and operator training; warranty duration and included services should be confirmed in the project quotation.
