What is a Laboratory Freeze Dryer?

In cutting-edge fields such as pharmaceuticals, biotechnology, materials science, and food engineering, a key challenge for researchers and engineers is achieving long-term stable storage and convenient transportation of samples without damaging their microstructure and biological activity. AGICO, a leading manufacturer of precision laboratory instruments, understands this need deeply. Our FD Series Laboratory Freeze Dryers integrate cutting-edge technology, refined craftsmanship, and intelligent control. Characterized by precision engineering, user-friendly operation, and strong flexibility, they are widely used in medical, pharmaceutical, bioproducts research, chemistry, food & fruit/vegetable processing, nanomaterials, and many other fields, serving as the ideal choice for teaching and research in universities and scientific laboratories. We offer multiple specifications and configurations to meet the routine freeze-drying requirements of most laboratories, providing you with precise, efficient, and reliable lyophilization solutions from basic research to pilot-scale amplification.

Send Enquire Now

A laboratory freeze dryer, scientifically known as a lyophilizer, is a precision instrument that removes water (or other solvents) from samples through the principle of sublimation. The process involves three core steps: first, rapidly freezing the sample below its eutectic point, solidifying the water into ice; then, providing precise heat to the sample under a vacuum environment, causing the ice to sublimate directly into water vapor; finally, capturing and re-condensing the water vapor onto a lower-temperature condenser (cold trap), thus obtaining a dry, porous product.

Parts of a Laboratory Freeze Dryer

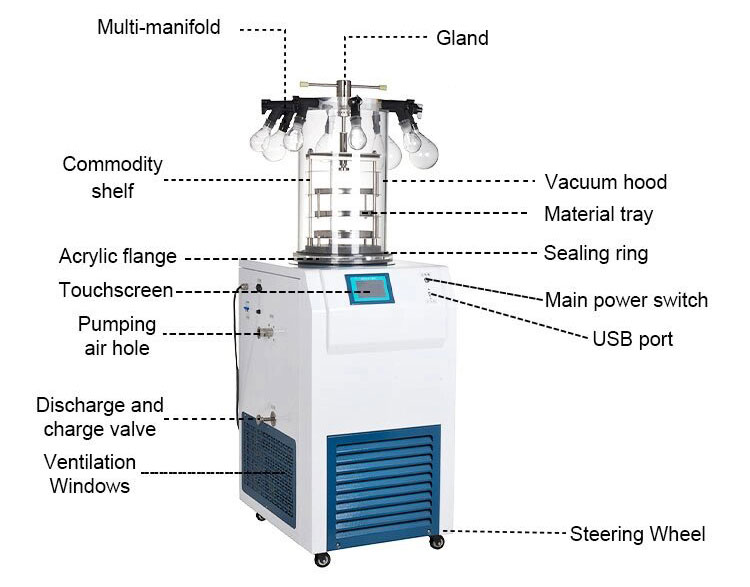

Structure of lab freeze dryer

Structure of lab freeze dryer

Each AGICO lab freeze dryer is a precision-engineered system, where key components work together to ensure reliable performance:

Drying Chamber

Made of high-grade 304 or 316L stainless steel for easy cleaning and corrosion resistance. The transparent door allows process observation, and its sealed design ensures high vacuum integrity.

Vacuum System

Uses a high-performance vacuum pump to quickly achieve and maintain a strong vacuum (< 10 Pa). An integrated vacuum gauge provides real-time monitoring for precise control.

Cold Trap

Acts as the unit's "heart." Its efficient coil design reaches temperatures as low as -80°C, ensuring high ice condensation capacity for efficient drying and pump protection.

Temperature-Controlled Shelves

Available in standard or heated versions. The heated shelves provide precise, uniform temperature control from -50°C to +70°C, with programmable heating profiles for complex drying processes.

Control System

Features a user-friendly touchscreen interface to monitor all key parameters in real-time. Users can save and run up to 50 programs for fully automated, unattended operation.

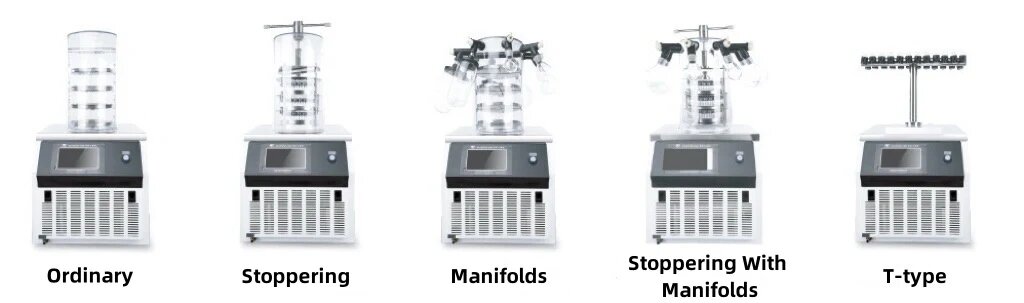

Types of AGICO Laboratory Freeze Dryer

Get a free quote

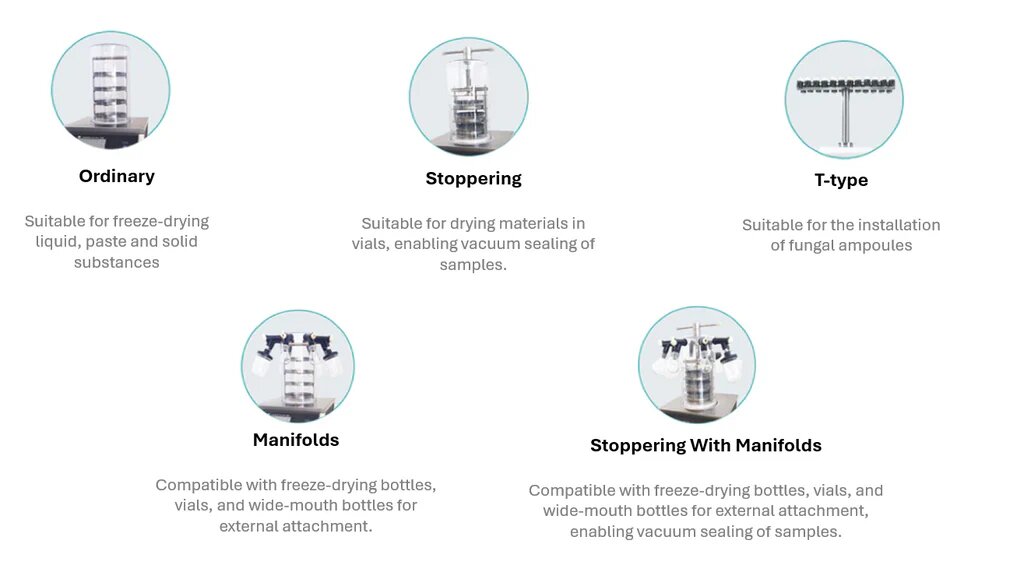

To meet the stringent requirements of different material characteristics and experimental workflows, AGICO Laboratory Freeze Dryers offer various functional models, achieving a high degree of customization:

Ordinary Type: Material is bulk-loaded into material trays. Suitable for freeze-drying substances like foods, Chinese herbal medicine, and powder materials that do not require stringent sealing.
Manifold with Stoppering Type: Designed specifically for materials loaded in vials. The vial stoppers are placed loosely before drying. After drying is complete, the built-in mechanism presses the stoppers tight under vacuum, effectively preventing secondary contamination and re-absorption of moisture, facilitating the long-term preservation of pharmaceuticals, microbial strains, etc.
Manifold Type (Standard): Flasks are attached externally to the drying chamber for drying material shell-frozen on the inner flask walls. Via the manifold valve system, flasks can be attached or detached as needed without stopping the process, significantly improving efficiency for handling small batches or multiple sample types.
Manifold Type (T-type): Designed for ampoules, suitable for the long-term preservation of microbial strains like bacteria and fungi. Samples are sealed within small ampoules under vacuum or inert gas atmosphere after lyophilization, offering advantages like long preservation periods and low mutation rates.
Manifold with Stoppering Type: Combines the features of both the Stoppering Type and the Manifold Type, offering multiple functionalities in one unit with extreme flexibility.
In-situ Type: The material can complete the entire process from pre-freezing to drying within the drying chamber, eliminating the need for transfer mid-process. This maximizes operational simplicity and prevents contamination, making it ideal for high-end pharmaceutical and biological research.

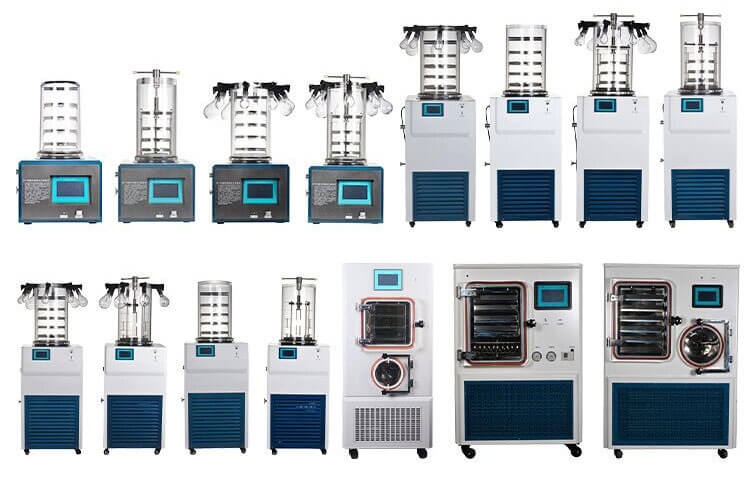

Product Models and Technical Parameters

The AGICO FD Series offers various specifications to meet diverse needs, from routine experiments to pilot-scale production:

Model	Configuration Type	Condensing Temp(℃)	Vacuum(Pa)	Freeze-drying Area(㎡)	Ice Capacity(kg/24h)	Power(W)	Material Tray Config	Bottle Hanging Config	Special Features
FD-1	Standard	< -50	< 10	0.12	3	100	200×4 layers	-	-
FD-1	With Stoppering	< -50	< 10	0.07	3	100	180×3 layers	-	-
FD-1	Manifold Standard	< -50	< 10	0.12	3	100	200×4 layers	8 optional bottles	-
FD-1	Manifold Stoppering	< -50	< 10	0.07	3	100	180×3 layers	8 optional bottles	-
FD-1PF	Standard	< -50	< 10	0.12	3	1100	200×4 layers	-	Vacuum Digital Display
FD-1PF	With Stoppering	< -50	< 10	0.07	3	1100	180×3 layers	-	Vacuum Digital Display
FD-1PF	Manifold Standard	< -50	< 10	0.12	3	1100	200×4 layers	8 optional bottles	Vacuum Digital Display
FD-1PF	Manifold Stoppering	< -50	< 10	0.07	3	1100	180×3 layers	8 optional bottles	Vacuum Digital Display
FD-1L	Standard	< -80	< 10	0.12	3	1600	180×3 layers	-	Vacuum Digital Display
FD-1L	With Stoppering	< -80	< 10	0.12	3	1600	180×3 layers	-	Vacuum Digital Display
FD-1L	Manifold Standard	< -80	< 10	0.12	3	1600	200×4 layers	8 optional bottles	Vacuum Digital Display
FD-1L	Manifold Stoppering	< -80	< 10	0.07	3	1600	180×3 layers	8 optional bottles	Vacuum Digital Display
FD-1E	-	< -50	< 10	-	3	1100	-	-	-
FD-1SL	Standard	< -80	< 10	0.12	8	2200	-	-	With Heating Function
FD-1SL	With Stoppering	< -80	< 10	0.07	8	2200	-	-	With Heating Function
FD-18	Standard	< -50	< 10	0.18	6	1500	240×4 layers	-	Vacuum Digital Display
FD-18	With Stoppering	< -50	< 10	0.11	6	1500	220×3 layers	-	Vacuum Digital Display
FD-18	Manifold Standard	< -50	< 10	0.18	6	1500	240×4 layers	8 optional bottles	Vacuum Digital Display
FD-18	Manifold Stoppering	< -50	< 10	0.11	6	1500	220×3 layers	8 optional bottles	Vacuum Digital Display
FD-18S	Standard	< -50	< 10	0.18	6	1700	240×4 layers	-	With Heating Function Freeze-drying Curve
FD-18S	With Stoppering	< -50	< 10	0.11	6	1700	220×3 layers	-	With Heating Function Freeze-drying Curve
FD-18S	Manifold Standard	< -50	< 10	0.18	6	1700	240×4 layers	8 optional bottles	With Heating Function Freeze-drying Curve
FD-18S	Manifold Stoppering	< -50	< 10	0.11	6	1700	220×3 layers	8 optional bottles	With Heating Function Freeze-drying Curve
FD-18E	-	< -50	< 10	-	6	1500	-	-	-
FD-27	Standard	< -80	< 10	0.27	6	2200	240×6 layers	-	-
FD-27	With Stoppering	< -80	< 10	0.11	6	2200	220×3 layers	-	-
FD-27	Manifold Standard	< -80	< 10	0.27	6	2200	240×6 layers	8 optional bottles	-
FD-27	Manifold Stoppering	< -80	< 10	0.11	6	2200	220×3 layers	8 optional bottles	-
FD-275	Standard	< -80	< 10	0.27	6	2200	240×6 layers	-	With Heating Function Freeze-drying Curve
FD-275	Manifold Stoppering	< -80	< 10	0.11	6	2200	220×3 layers	8 optional bottles	With Heating Function Freeze-drying Curve
FD-27E	-	< -80	< 10	-	6	2200	-	-	-

Features of AGICO Laboratory Freeze Dryer

AGICO freeze dryers integrate numerous advanced technologies, ensuring excellent performance in every detail:

Powerful Refrigeration & Efficient Condensation: Utilizes imported fully hermetic refrigeration compressors, ensuring stable performance, low temperatures, and strong water capture capacity. Simultaneously, the units adopt air-cooled condensation, requiring no water cooling, simplifying installation requirements.
Highly Reliable Vacuum System: Vacuum connections employ international standard fittings, making disassembly and installation easy and convenient, with reliable sealing performance, effectively ensuring ultimate vacuum levels and system longevity.
Intelligent and Intuitive Human-Machine Interaction: Both cold trap temperature and sample vacuum are displayed via LED digital displays, providing clear and concise readings. Specially designed tactile soft keys enable quick and accurate function setting, making operation simple and convenient.
Safe and Visible Drying Process: Some models are equipped with a transparent bell jar drying chamber, allowing for safe and visual monitoring of the material state, facilitating teaching demonstrations and process observation.
Flexible and Durable Structural Design: Specially designed stainless steel shelves allow for adjustable tray spacing and a freely set number of layers in standard models. The overall use of stainless steel for the cold trap and work surface ensures cleanliness, hygiene, aesthetics, and corrosion resistance

Why Choose AGICO?

Excellent Refrigeration and Condensation Performance

Utilizes internationally renowned brand compressors for high efficiency and stable, reliable operation. Combined with an optimized coil design, the cold trap offers powerful water capture capacity, ensuring shorter freeze-drying cycles and higher efficiency.

Precise Process Control and Data Traceability

Advanced models feature color touchscreens enabling multi-dimensional program control linking "Vacuum + Temperature + Time". Data can be exported via USB interface, complying with GMP/GLP requirements for data integrity.

Patented Technology and User-Centric Design

We hold multiple utility patents for features like quick release valves and hot media defrosting for the cold trap. The cold trap can be removed separately as a water collection vessel, making defrosting and cleaning extremely convenient and significantly reducing user maintenance effort.

Modular Design and Powerful Customization Capability

From Standard to complex In-situ Stoppering types, we offer the most comprehensive functional selection. We can also provide non-standard customized solutions based on your specific needs, truly achieving a "tailor-made" fit.

Stringent Quality Assurance and Global Service

From the selection of core components to the final product, every AGICO freeze dryer undergoes rigorous quality inspection and operational testing. We provide comprehensive technical consultation and a global service network, ensuring you receive timely and professional technical support.
AGICO Laboratory Freeze Dryer

Application

AGICO Laboratory Freeze Dryers are indispensable tools in the following fields:

Biopharmaceuticals: Preparation and preservation of vaccines, antibiotics, serum, proteins, cells, and strain libraries.
Food & Health Products: Deep processing and flavor preservation research for fruit/vegetable powders, probiotics, royal jelly, and instant soup bases.
Materials Chemistry: Preparation of nano powders, graphene, catalysts, and aerogels, effectively preventing particle agglomeration.
Diagnostic Reagents & Microbiology: Lyophilization preservation of PCR reagents, calibrators, and microbial strains.

Application of Freeze Dryer
