High Throughput
The standard preliminary configuration processes approximately 800-1,000 coconuts per hour for commercial continuous production.

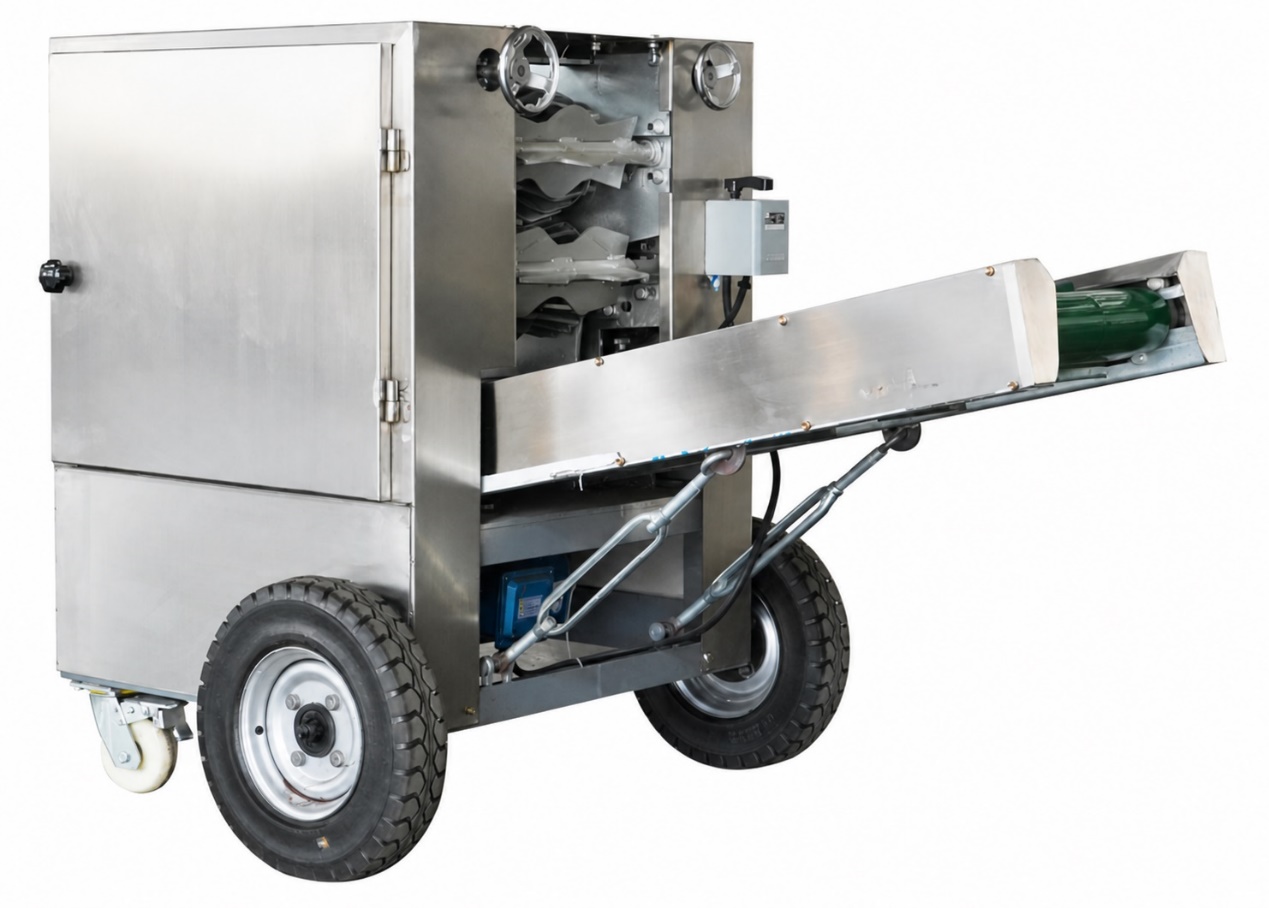

AGICO automatic coconut dehusking machine is a high-efficiency peeling machine designed for commercial coconut processing plants. It removes the fibrous outer husk from mature and semi-mature coconuts and prepares intact hard-shell coconuts for shelling, water extraction, meat processing, coconut milk, desiccated coconut, and oil production.
Compared with manual dehusking, this commercial coconut peeling machine supports continuous production at a preliminary capacity of 800-1,000 coconuts per hour. It helps processors improve throughput, reduce repetitive labor, and maintain a consistent material flow for downstream equipment.
How a Coconut Dehusking Machine Works
AGICO coconut husk remover machine uses controlled extrusion and stripping. The operator feeds coconuts one at a time through the top inlet. Inside the guarded cabinet, gripping and stripping elements pull away the fibrous husk. Loose coir falls into the lower collection area, while the dehusked coconut transfers onto the inclined conveyor for collection or delivery to the next processing station.
The chain-drive transmission supports stable continuous operation. A stainless-steel 304 outer cover provides corrosion resistance and a cleanable exterior suitable for food-processing environments.

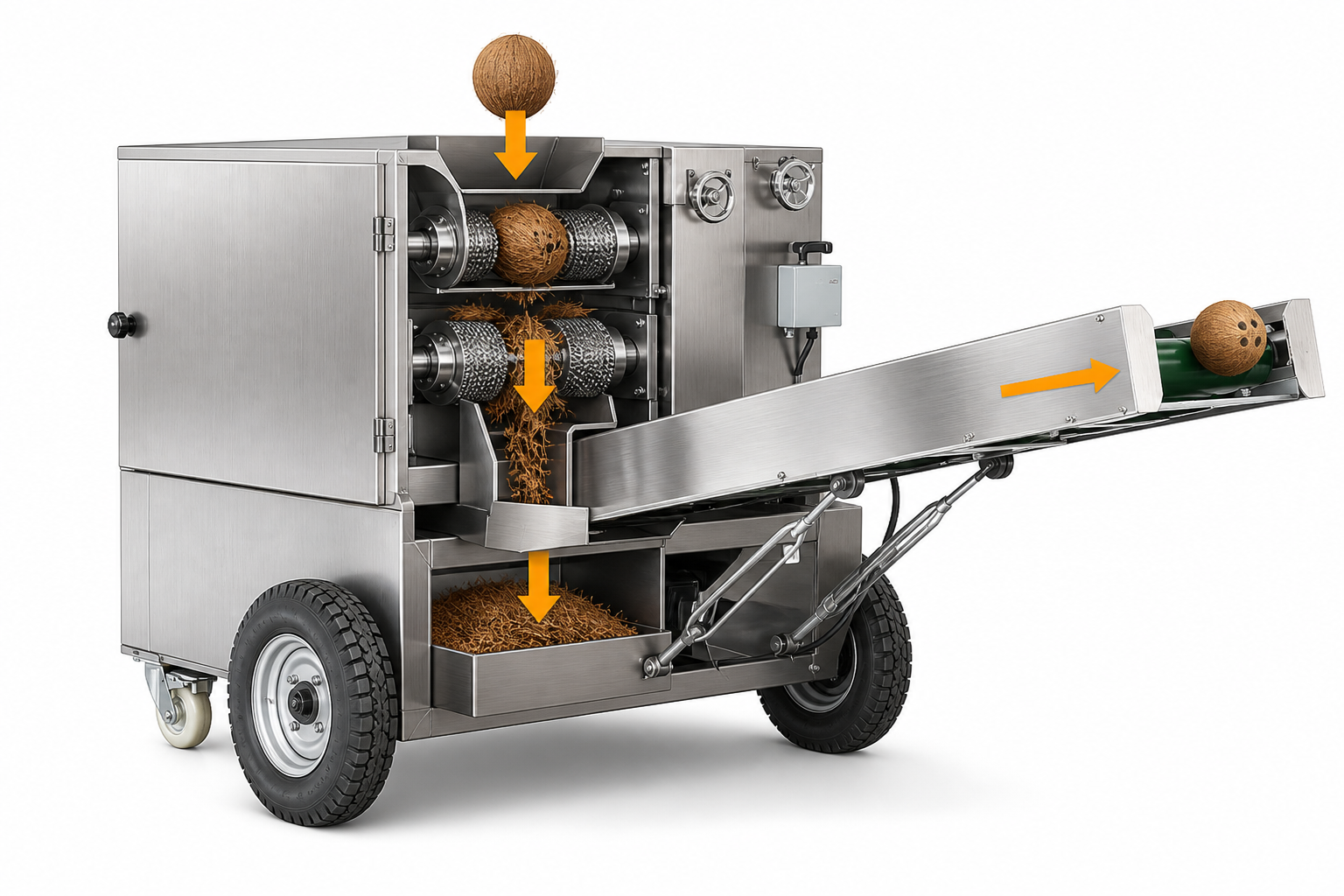

Correct material flow: top inlet, internal dehusking, right-side coconut discharge, and lower husk collection.

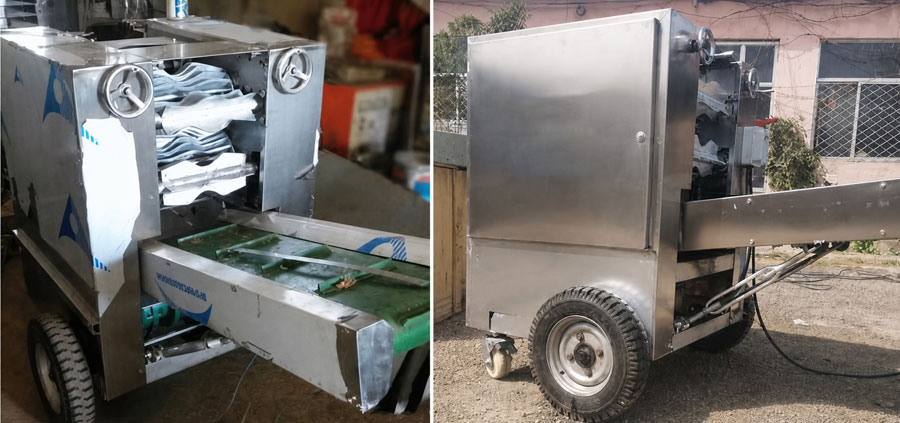

Features of AGICO Coconut Dehusking Equipment
Easy Operation
A straightforward feeding and discharge process allows ordinary workers to operate the coconut husking machine after appropriate training.
Keep Coconut Shape Intact
Controlled stripping helps retain the hard-shell coconut for subsequent shelling, water extraction, and meat processing.
Wear-resistant Stripping Components
The stripping tool head uses hard alloy material for wear resistance and long service life.
Anti-tangle Design
A coconut-coir separation device helps prevent removed fiber from rotating continuously with the stripping roller.
Hygienic Exterior
The stainless-steel 304 outer cover is corrosion-resistant and easy to clean. Internal and product-contact materials are confirmed in the final technical proposal.
Stable Chain Drive
Chain-drive transmission provides stable power transfer and convenient routine maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AGICO-CNH200 |
| Capacity | 800-1,000 pcs/h |
| Power | 3 kW |
| Voltage | 220V / 380V (Optional) |
| Dimensions (L x W x H) | 1300 x 1000 x 1100 mm |
| Weight | 200 kg |
| Transmission | Chain Drive |
| Outer Cover Material | Stainless Steel 304 |
| Suitable Raw Material | Mature or Semi-mature Coconuts |
Note: The above configuration is preliminary commercial data. Actual output varies with coconut variety, size, maturity, and operation. Final specifications are subject to AGICO's technical proposal.

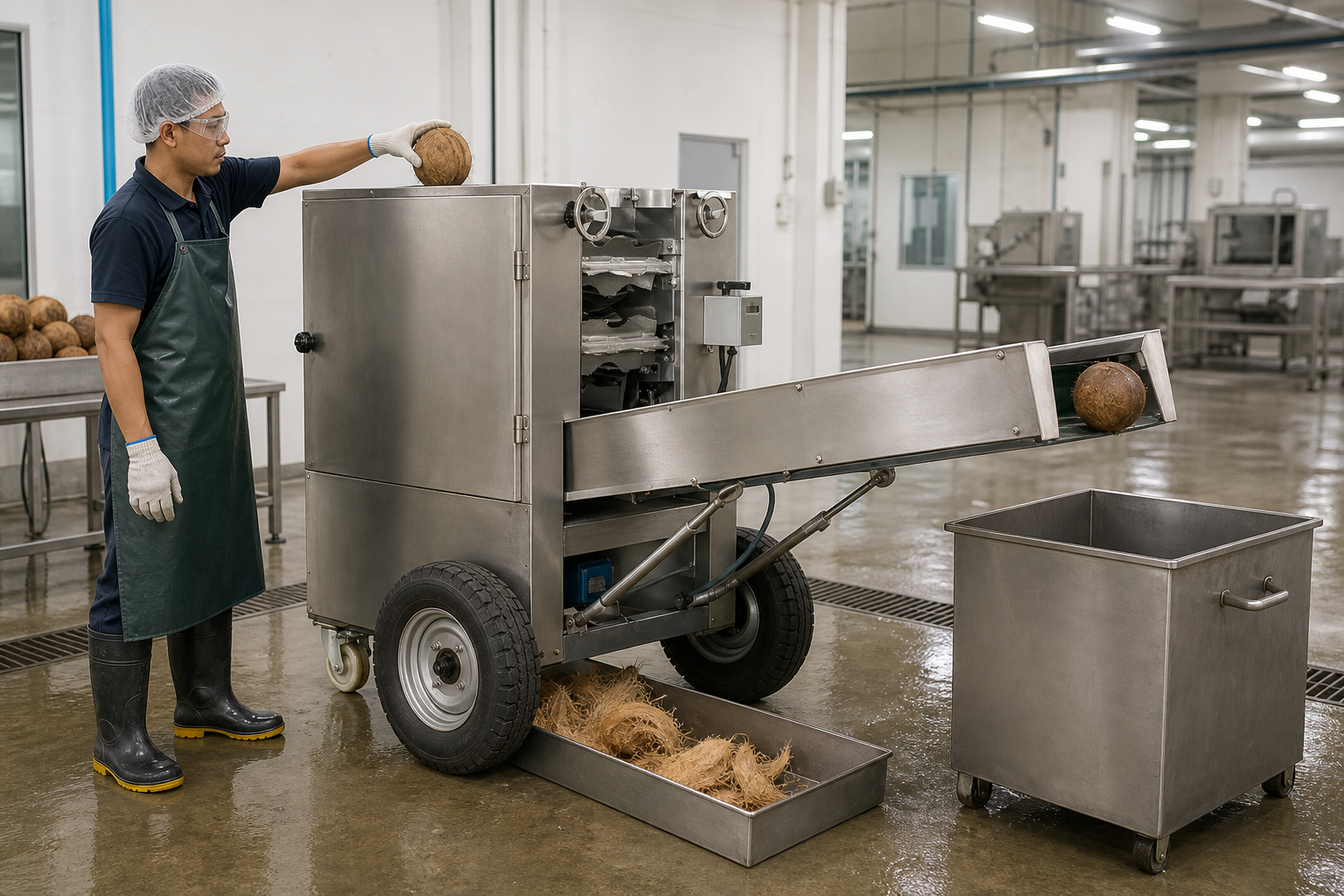

Applications of Coconut Peeling Machine
AGICO coconut dehusking equipment can be used as the first preparation step in a wide range of coconut-processing facilities:
- Coconut oil production plants: remove the husk before shelling, drying, and oil extraction.
- Coconut water beverage factories: prepare intact coconuts for controlled water extraction.
- Coconut meat processing plants: feed downstream desiccated coconut, coconut milk, and meat-processing equipment.
- Farms and collection centers: centralize husk removal to reduce transport volume.
- Integrated coconut processing lines: connect with shelling, paring, cutting, and juice-extraction machines.
Why Choose AGICO Coconut Dehusking Machine
- Technical experience: an experienced equipment team supports machine selection and process planning.
- Custom configuration: solutions can be adapted to coconut variety, size, maturity, capacity, voltage, and line layout.
- International project support: CE certification is available upon request for an agreed configuration.
- Global supply experience: equipment is supplied to coconut-producing regions in Southeast Asia, Africa, South America, and other markets.
- After-sales support: installation guidance, operator training, spare parts, and remote troubleshooting are available.
Operation and Maintenance
Operation Tips
- Inspect guards, fasteners, the conveyor, and chain tension before each shift.
- Run the machine empty before feeding one coconut at a time at a steady pace.
- Never reach into the feed opening or roller area during operation.
- Isolate the power supply before cleaning, adjustment, or maintenance.
Maintenance Tips
- Remove loose coconut fiber regularly.
- Check chain tension and lubrication according to the operation manual.
- Avoid directing high-pressure water at motors and electrical controls.
- Follow the final machine manual supplied with the confirmed configuration.
Frequently Asked Questions about AGICO Coconut Dehusking Machine
Can this machine process both mature and semi-mature coconuts?
Yes. It is designed for both types, but sample testing is recommended before final acceptance because husk condition and maturity affect stripping performance.
Is the capacity of 800-1,000 coconuts per hour guaranteed?
This is the preliminary capacity range for the standard configuration. Actual output depends on coconut consistency, feeding, and operator practice. Contract performance is defined after technical review.
Does stainless steel 304 apply to the entire machine?
In the standard configuration, stainless steel 304 is specified for the outer cover. Internal and product-contact materials must be confirmed separately in the final quotation.
What is the coconut peeling machine price?
Price depends on configuration, voltage, certification, and customization. Send your processing requirements to receive a detailed quotation.
Can the machine connect with downstream equipment?
Yes. It can be planned as the first preparation stage before shelling and cutting. Discharge height and transfer direction can be coordinated during line design.
What information is needed for a quotation?
Please provide raw-material photos or samples, coconut size range and maturity, target capacity, power supply, destination country, and downstream process.
