Pomegranate juice processing line

Pomegranate Juice Machine and Processing Line Overview

pomegranate juice

An industrial pomegranate juice machine can be integrated into a processing line for fruit inspection, washing, aril separation, juice extraction, screening and downstream treatment. The supplier lists line capacity starting at 4t/h of incoming pomegranates; final throughput, extraction method and juice quality depend on raw fruit and equipment configuration.

The line can be specified for pomegranate juice as an ingredient or finished beverage. Provide the target juice specification and packaging format so the separation, extraction and finishing stages can be selected accurately.

pomegranate juice processing line

Pomegranate juice processing line

Get Price Now

Pomegranate Juice Processing Workflow

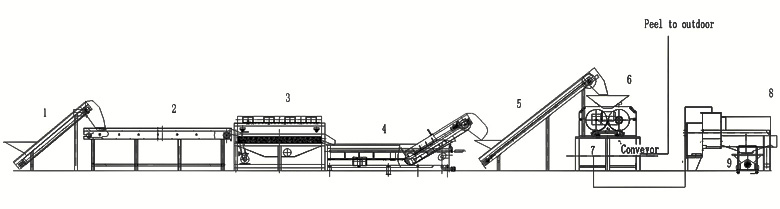

Workflow of Pomegranate Juice Processing Line

1. Fruit elevator 2. Fruit sorter 3. Brush and​ spray cleaning machine 4.  Fruit bubble washing machine 5. Fruit elevator
6. Peeling and squeezing machine 7. Pump Ⅰ 8. Pomegranate pulper 9. Pump Ⅱ

Contact us for product catalog

Pomegranate Juice Extraction and Screening

The extraction stage processes separated pomegranate arils using the selected press or pulping equipment. Pressing conditions influence seed damage and bitterness; a downstream vibrating screen can remove coarse solids. Confirm extraction performance with representative fruit before finalizing the line.

Pomegranate Juice End Products

The illustrated line produces pomegranate juice for further processing or filling. Clarified juice, pasteurized juice and packed beverages require the appropriate filtration, thermal treatment and packaging stages.

pomegranate juice processing line pomegranate juice processing line. pomegranate juice processing line

Main Equipment in the Pomegranate Juice Processing Line

A complete pomegranate juice processing line may include fruit sorting, washing, rind and aril separation, juice extraction, screening, pasteurization and filling. The exact process depends on the target product and selected equipment:

  • Fruit washing machine

  • Fruit sorting machine

  • Pomegranate peeling and deseeding machine

  • Juice extractor machine

  • Juice filter machine

  • Juice pasteurizer

  • Juice filling machine

Elevator

The fruit elevator conveys pomegranates between process stages. The supplier describes a motor-driven conveying chain; capacity, incline and fruit handling should be specified for the selected line.

Rolling rail fruit sorting machine

production of pomegranate juice Pomagranate sorting
sorting of pomegranate Pomagranate sorting
Rolling rail fruit sorting machineFruit sorting machine

The roller sorting station presents pomegranates for visual inspection so unsuitable fruit can be removed before extraction. Whether additional size grading is included depends on the selected machine.

Brush and spray cleaning machine

A brush-and-spray stage can help remove adhered surface matter from pomegranate rind before extraction.

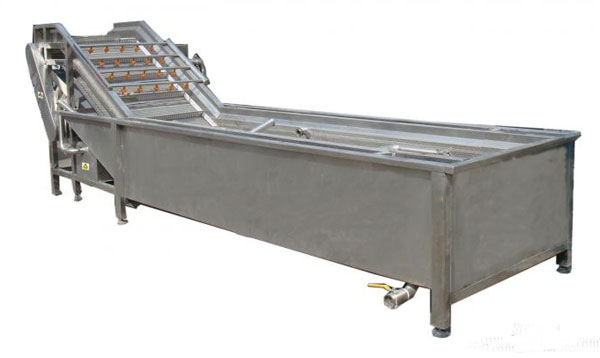

Fruit bubble washing machine

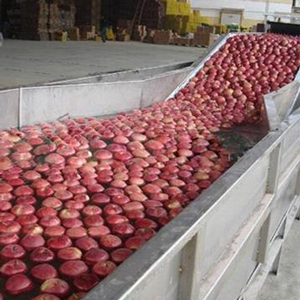

Fruit bubble washing machine
Fruit bubble washing machine

The bubble washer provides a mechanical cleaning stage for pomegranates. Water circulation and filtration may be configured for the proposed equipment; verify water use, cleaning access and fruit handling for the selected model.

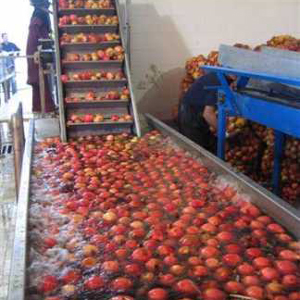

Pomegranate washing

Fruit bubble washing machine
Get Price Now

The supplier text lists 2mm stainless steel plates for the water tank, rack and shield of this washing unit; confirm material grade and thickness for the quoted model. The supplier text lists 1Cr13 stainless steel for transmission shafts and chains; confirm the component scope and material certificate for the quoted unit. It incorporates an automatic water pump that supplies water to the tank and a filter screen that removes impurities.

Peeling and squeezing machine

Pomegranate peeling
Pomegranate peeling

The pomegranate rind and aril separation stage prepares fruit for juice extraction. Machine settings should limit seed breakage where a less bitter juice profile is required; yield and flavor need validation with the customer's fruit.

Pomegranate pulper

The selected pulper or press extracts juice from prepared pomegranate arils. Screen size, pressure and process conditions affect solids content and flavor. Confirm product-contact materials and extraction performance in the final specification.

Pomegranate juice extraction and pulpingRequest a Quote

No.
Equipment name
1
fruit elevator for pomegranate juice line
2
Rolling rail fruit sorting machine
3
Brush and spray cleaning machine
brush and spary cleaning machine
4
fruit bubble washing machine
5
peeling and squeezing machine
6

fruit pulper for pomegranate juice processing

Pomegranate Juice Processing Line Features and Quotation

  • Press or pulper configuration is selected for the required juice yield, solids content and seed-handling approach.

  • Controls and cleaning access should be reviewed for the proposed equipment.

  • Confirm SUS304 scope and all product-contact materials in the final quotation.

  • Clarified, pasteurized or packed pomegranate juice requires the corresponding finishing stages.

  • The supplier lists 4t/h incoming-fruit capacity and above; confirm the target rate under agreed fruit conditions.

  • For a quotation, provide fruit variety and maturity, desired juice specification, required capacity, packaging format and utilities.



pomegranate juice processing line
pomegranate juice processing line
