Automatic Coconut Chips Cutting Slicing Machine

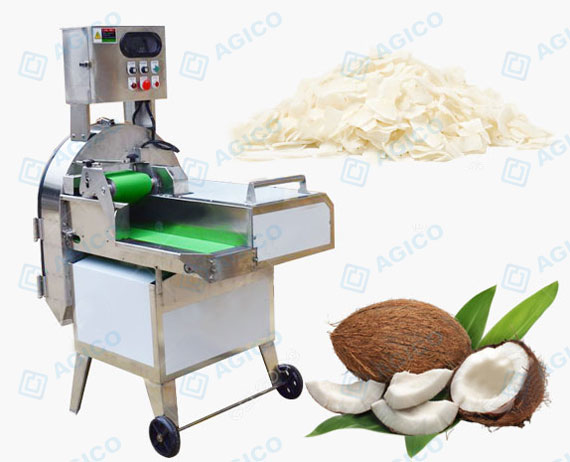

Coconut Chips Making MachineSend Enquire Now
Coconut Sliceer Machine WhatsAppThe coconut slicing machine is specially designed for processing coconut meat. By replacing different cutter plates or adjusting the conveyor belt and rotary blade speed, it can efficiently produce coconut slices, shreds, and dices in various specifications. The slices are uniform in thickness and size, with a fresh and smooth cut surface that preserves the fibrous structure of the coconut meat, ensuring superior quality of the finished coconut chips.
This coconut chips making machine is suitable for the pre-processing stage in coconut processing plants, where it quickly slices or shreds cleaned coconut meat for further deep processing. The cut coconut pieces can be used for further processing; finished texture and shelf life depend on the subsequent preparation and packaging.
The coconut chips making machine can cut coconut slices with a thickness ranging from 2mm to 7mm, adjustable according to needs. In addition to slicing, replacing the cutter set also allows the production of coconut shreds with a width of 2–7mm, as well as coconut dices in various sizes such as 8mm, 10mm, 12mm, 15mm, and 20mm. It fully meets the diverse processing needs for different forms of coconut cutting.
Features of the Coconut Slicer Machine

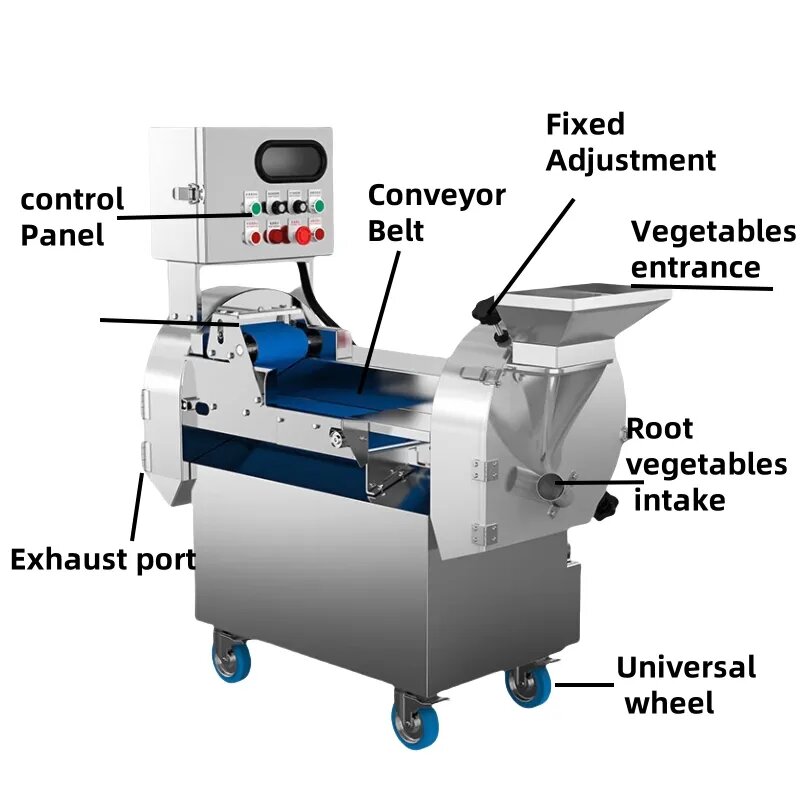

Structure of Coconut Chips Cutting MachineContact us for product catalogThis industrial coconut slicer machine is built for reliable, high-quality production. Its core features are designed for simplicity and versatility in any coconut processing line.
- Stainless Steel Build: Made with 304 stainless steel for lasting performance and easy cleaning.
- Adjustable Precision Cutting: Easily adjust the cutting size from 0 to 60mm. Produce uniform slices, shreds, and dices within the verified cutter-set range.
- Easy-Feed Conveyor Belt: The food-grade conveyor belt is widened for efficiency, features a non-slip surface, and is easily removable for quick cleaning.

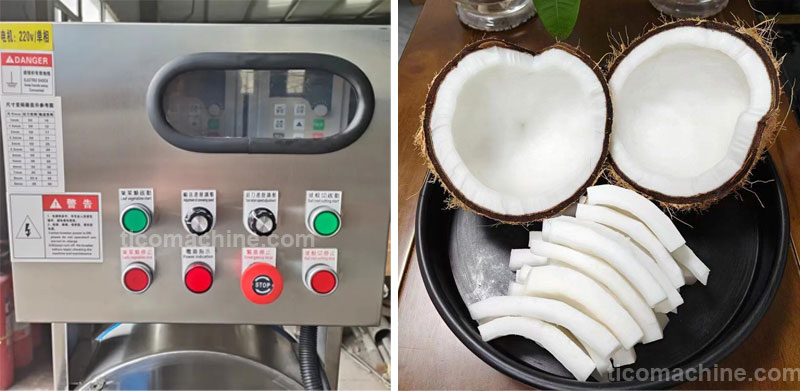

- User-Friendly Controls: Simple digital controls and clear buttons make operation straightforward and usable with training and the required guards in place.
- Dual Frequency Conversion: Independently control the speed of the conveyor belt and the cutting blade for precise adjustments to output size and texture.
- Waterproof & Easy Clean: Designed for quick cleanup. Clean the cutting area and conveyor belt according to the supplied operating instructions; use water only where the machine specification permits it.
- Versatile Processing: Confirm the cutter material and replacement-part specification for the ordered machine and the products to be processed.
Technical Parameters
| Model | Dimensionmm | Voltage | Power | Capacity kg/h | Net Weight | Cutting Size | Width of the belt |
|---|---|---|---|---|---|---|---|
| GG306 | 1020*760*1370 | 220V/380V | 1HP+2HP | 800-1500 | 140kg | 0-60 mm | 165mm |
Advantages of Coconut Chips Making Machine
- Easy to Use & Adjust: Simple controls and a viewing window let you monitor and adjust the cut easily. The large feed opening saves time.
- Precise Speed Control: Adjust both conveyor belt and cutter speed independently for Adjust both conveyor belt and cutter speed independently; verify the resulting thickness and texture with the intended product.
- Built to Last: Features a high-power motor, sturdy wheels for moving, and a stable, enclosed design for smooth operation.
- Versatile for Fruits & Vegetables: Other produce such as carrots, potatoes, and zucchini should be tested with the selected cutter set before suitability is claimed.
Our Service
Project Design
We can offer customized services: how to choose equipment, production process flow according to the actual productionenvironment and production requirements.
Installation Training
We provide telephone/video call guidance for equipmentinstallation and debugging. We can also send a technician toinstall and debug the machine and train your workers if needed.Long-term technical support.
After-sale Service
One year warranty, life-long maintenance; 24 hours online fortechnical consulting service.
One Year Warranty Time
From the date on which the product is qualified for commissioning.One-year guarantee for the whole machine, except for wearing partsfor non human-factor malfunction.
