Chilli Powder Making Machine Price, Automatic Chilli Grinding

Chilli Powder Making Machine

The chilli powder making machine (also called chilli powder grinding machine) is a high-efficiency food processing machine used to grind dry chilli and spices into powder. It is widely used in seasoning production, spice processing, pharmaceutical, and chemical industries. As the global spice market continues to grow and industries like pre-made dishes and compound seasonings expand rapidly, the demand for chilli deep-processing is increasing. AGICO chilli powder making machines cover a complete range from small home-use grinders to industrial ultra-fine grinding machines, and from single units to fully automatic production lines. They can meet the different needs of home workshops, small and medium-sized factories, and large enterprises.

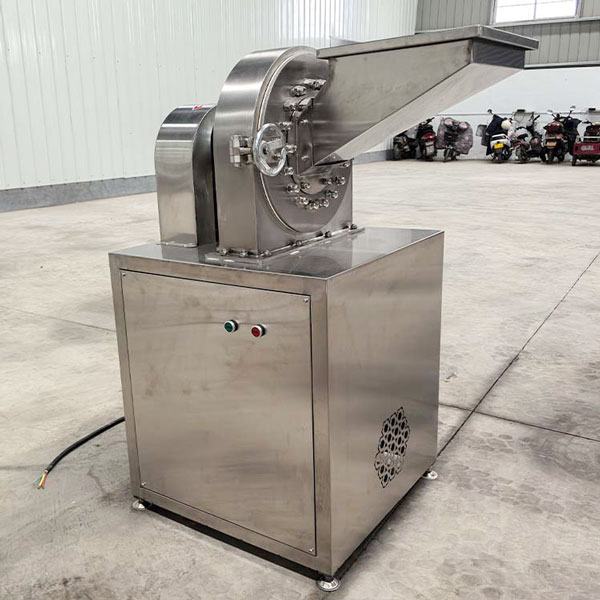

Working Principle of Chilli Powder Machine Get a free quote

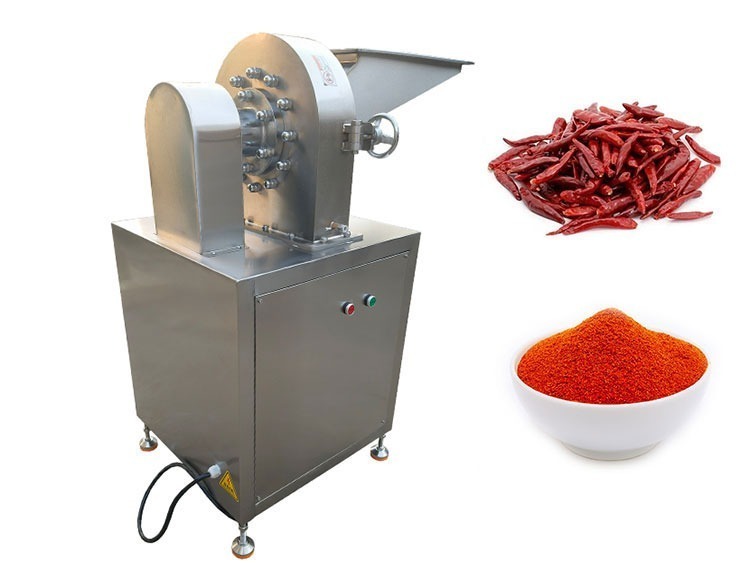

Working Principle of Chilli Powder Machine

AGICO chilli powder grinding machine mainly works by high-speed impact, shearing, and grinding. When the machine runs, the motor drives the main shaft and the turbine to rotate at high speed. The turbine and the grinding parts on the screen ring form a crushing-and-grinding pair. Material enters the grinding chamber through the hopper. It is then strongly impacted, sheared, and rubbed between the high-speed turbine blades and the fixed grinding parts, and is quickly crushed into fine powder. At the same time, the high-speed air flow produced by the turbine helps discharge the powder and also cools the chamber, preventing the chilli from losing its flavor due to overheating.

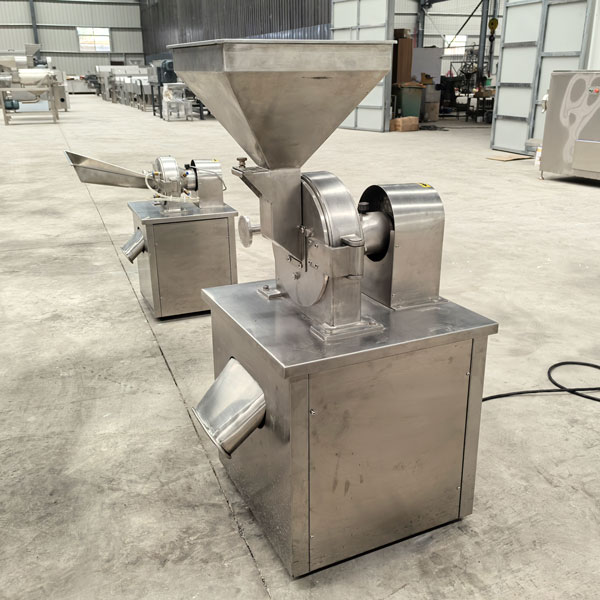

Chilli Grinding MachineSend Enquire Now

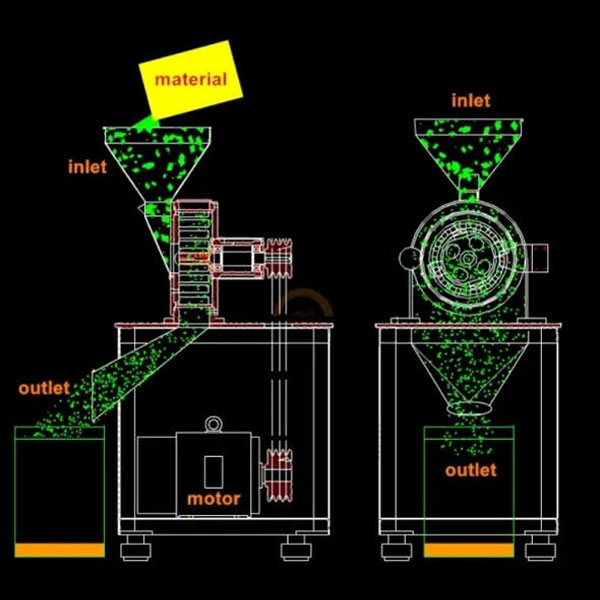

Chilli Powder Machine DiagramSend Enquire Now

Some high-end models use a three-stage grinding structure. The coarse crushing zone, medium grinding zone, and fine grinding zone are all in one chamber. The material passes through three grinding steps in one go and becomes a fine powder without repeated sieving, greatly improving efficiency. The ultra-fine chilli powder grinding machine uses an air classifier to separate ultra-fine powder precisely, meeting fine powder requirements from 60 to 500 mesh.

Main Technical Parameters

Our chilli powder grinding machines come in different models to meet different capacity needs. The table below shows typical models (WF series and WFJ series).

Model	Capacity (kg/h)	Spindle speed (r/min)	Feed size (mm)	Output fineness (mesh)	Motor power (kW)	Dimensions (mm)	Weight (kg)
WF-20B	60-150	4500	≤6	40-120	4	550×600×1250	250
WF-30B	100-300	3800	≤6	40-120	5.5	600×700×1450	350
WF-40B	160-800	3400	≤10	40-120	7.5	800×900×1550	550
WF-60B	300-1000	2800	≤12	40-120	18.5	900×900×1880	880
WF-80B	400-1500	2000	≤12	40-120	37	1100×950×1960	1500
WFJ-15	10-50	Variable	≤10	60-300	7.5	4200×1200×2700	850
WFJ-30	30-200	Variable	≤10	60-300	22	5500×1500×3200	1500
WFJ-60	100-500	Variable	≤10	60-500	45	6800×1800×3600	2800

Note: The above parameters are for reference only. Customized specifications are available.

Advantages of Chilli Powder Grinding Machine

Low-Temperature Grinding – Keeps Quality

Chilli contains capsaicin (hotness), red pigment (carotenoids), and volatile aroma compounds that are very sensitive to heat. Our machines can be equipped with a water cooling or air cooling system to reduce the heat produced during grinding. A powerful cyclone separator immediately removes the freshly ground powder from the heat source, preventing heat damage to capsaicin and loss of aromatic compounds. Under low-temperature and dry conditions, the red pigment retention rate can reach over 90%. The final product has bright color, pure hotness, and rich aroma.

Full Stainless Steel – Safe and Hygienic

All parts that touch the material are made of food-grade 304 or 316L stainless steel. They have good resistance to acid and corrosion and meet GMP, HACCP, and global food safety standards. The inner wall of the housing is smooth, solving the problem of powder sticking and accumulation. This ensures no contamination during processing and easy cleaning, meeting food and pharmaceutical grade production requirements.

Adjustable Fineness – Wide Application

You can adjust the grinding fineness by changing the sieve screen size or adjusting the frequency converter speed. The output particle size can be adjusted from 10 mesh to 500 mesh (40-120 mesh for standard models, 60-500 mesh for ultra-fine models), covering the full range from coarse powder to ultra-fine powder. The machine is not only for dry chilli, but also for pepper, turmeric, star anise, cinnamon, grains, herbs, and other medium-hard materials. One machine can do many jobs, giving you a high return on investment.

High Efficiency, Low Dust, Safe & Green

The machine has a sealed design and a high-efficiency dust collection and filtration system. This greatly reduces the release of chilli dust into the air, eliminates irritation to operators, and creates a safer working environment. The dust collector also recovers fine powder, reducing material loss. The whole machine runs smoothly with low energy consumption and low noise, meeting environmental protection requirements.

Chilli Powder Making MachineGet Price Now

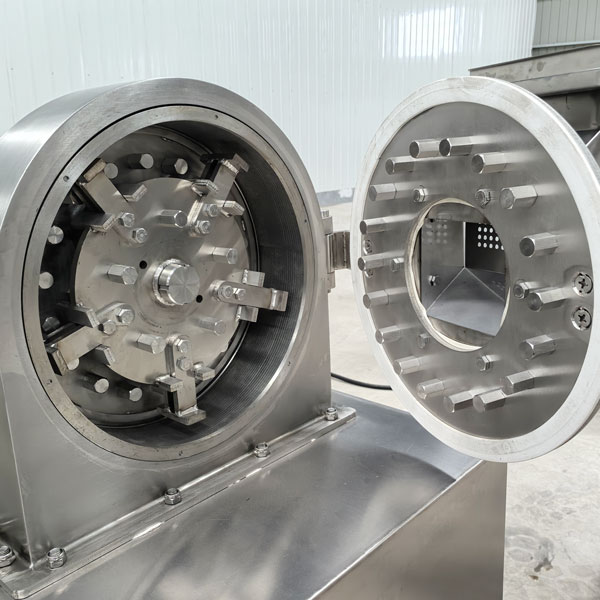

Inner Structure of Chilli Powder Grinding Machine

Inner StructureGet Price Now

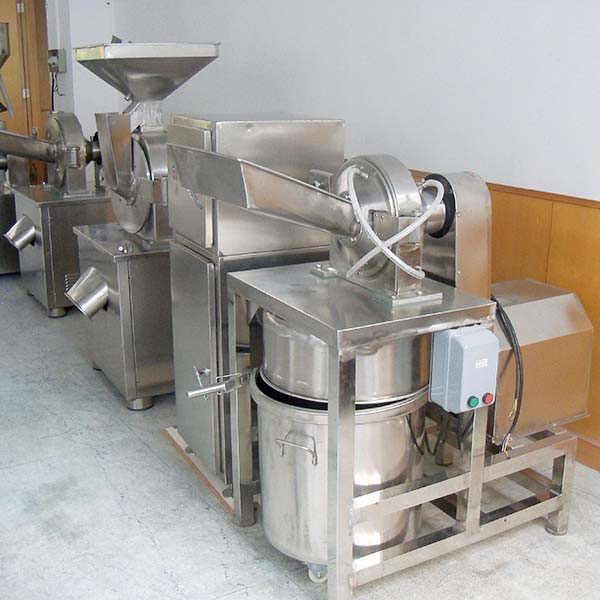

Fully Automatic Chilli Powder Production Line

AGICO provides a turnkey solution for a fully automatic chilli powder production line, covering the whole process from raw material receiving to final packaging:

Chilli receiving & washing → Pre-sorting & impurity removal → Drying → Grinding → Sieving & re-grinding → Packaging

Main equipment includes: chilli washing machine, chilli dryer (belt dryer), chilli grinding machine, chilli powder packing machine, etc. The whole line is controlled by PLC + touch screen, allowing precise monitoring of each process and storage of recipes. Processing capacity ranges from 50 to 1500 kg/h, and can be customized according to customer needs.

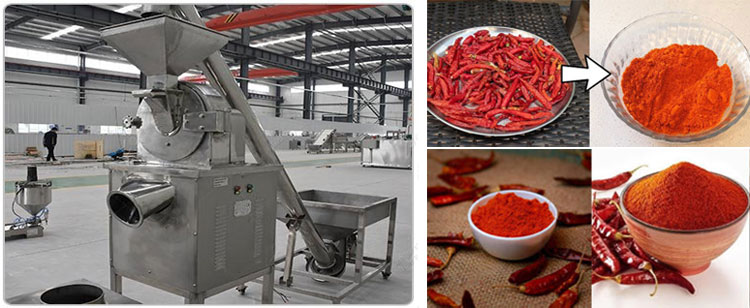

chilli powder grinder machine

Buying Guide for Chilli Powder Making Machine

When choosing a chilli powder making machine, please consider the following:

Capacity matching – Small workshop: 10-150 kg/h; medium enterprise: 150-1000 kg/h; large factory: above 1000 kg/h.
Fineness requirement – For general cooking seasoning, 40-120 mesh is enough. For high-end spices or export, choose an ultra-fine grinder (above 300 mesh) to increase product value.
Material – For food processing, be sure to choose 304 or higher stainless steel to ensure safety and durability.
Cooling system – For heat-sensitive materials (e.g., high-temperature chilli, colored chilli), choose water or air cooling to protect quality.
Automation level – If labor cost is high or you need stable production, consider a fully automatic PLC-controlled machine.

Send Enquire Now

Fully Automatic Chilli Powder Production Line

Customer Service

AGICO provides full technical support from machine selection, installation and debugging, to operation training. AGICO offers long-term technical support and spare parts supply. On-site installation guidance is available to ensure smooth production. For overseas customers, CE certification and English manuals are available, and we support worldwide shipping.
